Pico CAN Test Box – PP619
$307.00
- Provides easy access to the 16-pin data link connector found on all modern cars
- Instantly check power and ground circuits
- Identify communication protocols
- Connect an oscilloscope for signal capture and collection of signal waveform data
- Test and diagnose communication signals on CAN and other protocols
Description

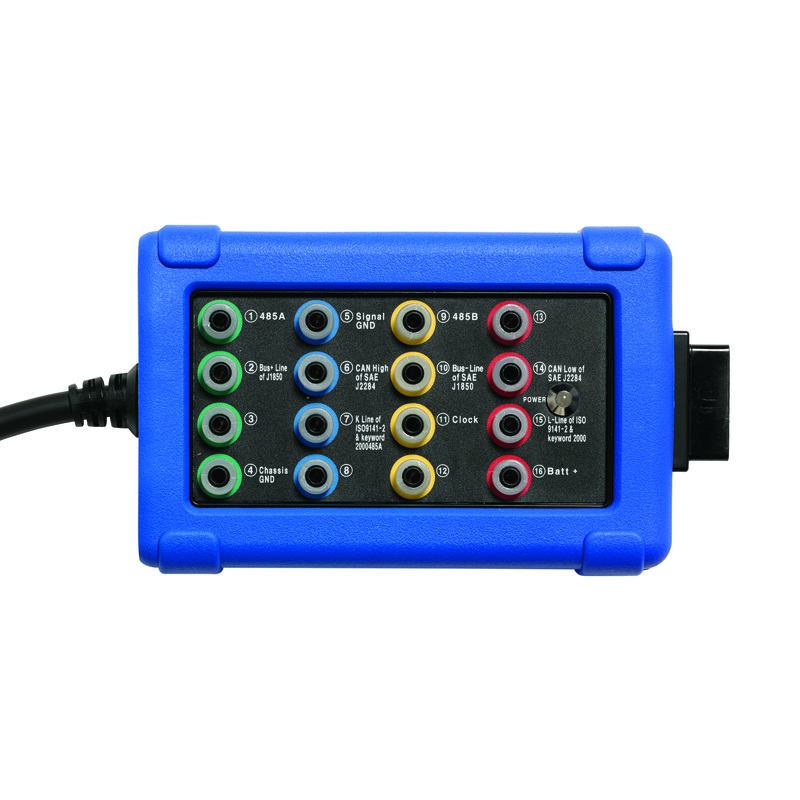

The connection of the Can Test Box to the 16 pin vehicle diagnostic connector provides a non-intrusive test point for all associated circuits, whilst LED’s will illuminate to indicate the status of the 16 pins. The 4mm banana sockets enable simple connection of PicoScope for circuit analysis, “jumper wires” for flash code interrogation, and on board “memory save” devices (During battery disconnection) With the pass-through connector and 2.5 meter cable, the Can Test Box can be used in series with your scan tool and remote from the 16 pin connector allowing for simultaneous scan tool and scope tests. (See below)
- Power and ground test for communication errors
- CAN HI CAN LOW activity (depending on manufacturer)
- Convenient “jumper wire” access point for flash code access or initialization procedures
- Convenient point for “memory save” device connection
- Remote access to concealed 16 pin connectors via 2.5 meter cable
- Pass-through feature does not restrict scan tool access when connected
