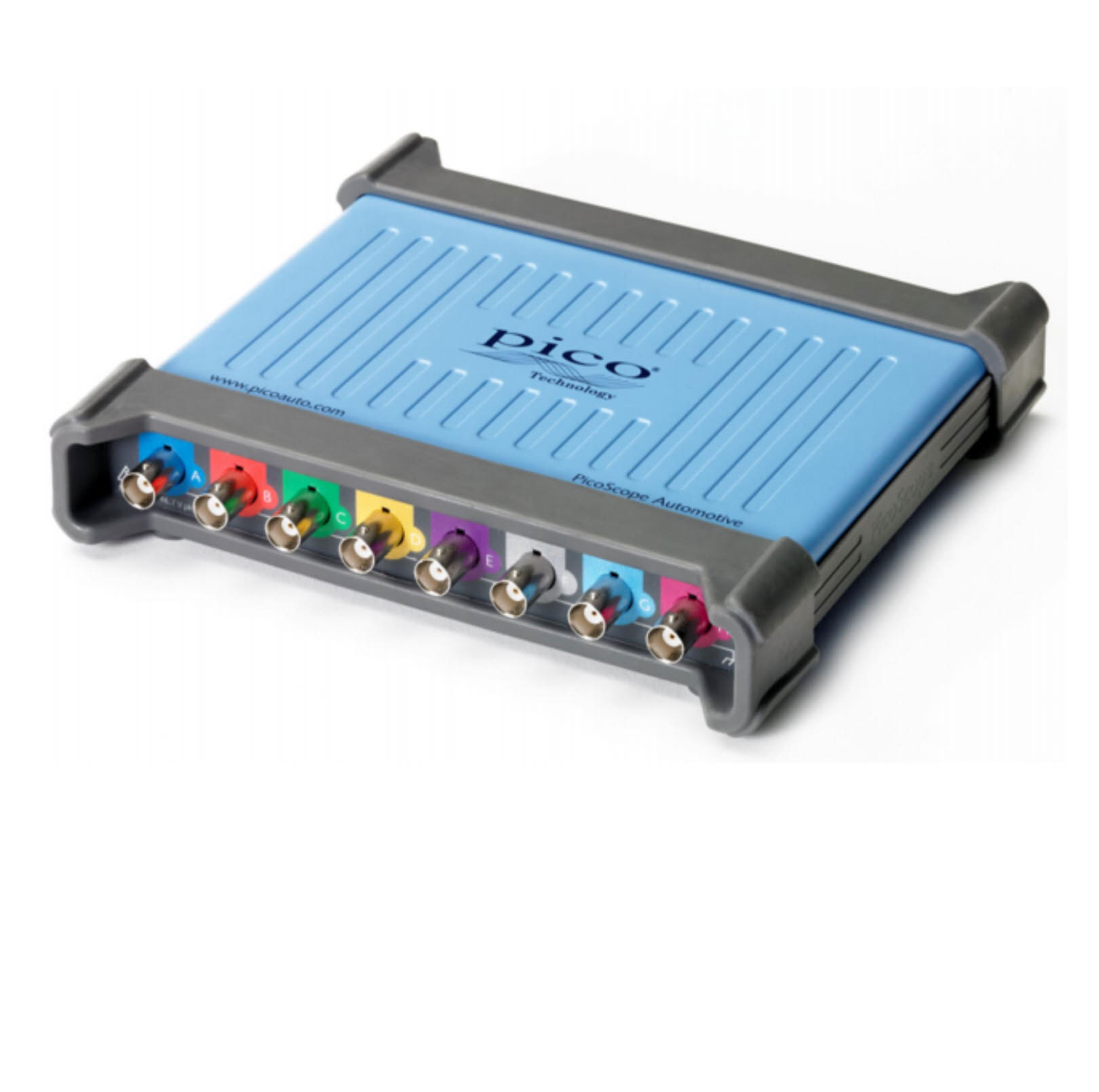

8-Channel PicoScope (4823) – Professional Diagnostic Kit – PQ184
$6,201.00
Comprehensive 8-channel kit for the professional technician – Includes scope, leads, and a complete set of probes and accessories (See additional details for list of contents and specifications).
Description
Kit Includes:
PA186 | 1 | Carry Case: Heavy Duty PS4823 |
PR361 | 1 | PS4823 8 channel 20MHz 80MS/s USB3.0 automotive scope |
MI121 | 1 | Cable: USB2 4.5m |
TA155 | 1 | Cable: USB 3.0 blue 1.8m |
MI168 | 2 | “S” Hook |
TA125 | 1 | Premium Test Lead: 3M BNC to 4mm blue permanent ground |
TA126 | 1 | Premium Test Lead: 3M BNC to 4mm red permanent ground |
TA127 | 1 | Premium Test Lead: 3M BNC to 4mm green permanent ground |
TA128 | 1 | Premium Test Lead: 3M BNC to 4mm yellow permanent ground |
TA472 | 4 | Premium Test Lead: 3M BNC to 4mm black permanent ground |
LA732 | 1 | Label: Destiny 8 channel scope sheet of coloured labels |
TA197 | 4 | Divide by 10 attenuator |
TA375 | 2 | Oscilloscope probe: 1:1/10:1 switchable 100 MHz, BNC |
MI074 | 8 | Secondary Ignition Pickup (automotive test lead) |
TA037 | 4 | HT extension test lead |
TA204 | 1 | Insulated COP and signal probe |
TA033 | 1 | Lead: BNC to BNC with earth clamp |
TA106 | 1 | Earth wire for coil pack 45cm long |
TA018 | 1 | 60A DC current clamp with BNC connector |
TA167 | 1 | Precision 2000A/200A current clamp BNC |
TA234 | 1 | Current Clamp: 30A |
TA329 | 1 | Ultrasonic Parking Sensor Detector |
TA330 | 1 | Keyless Entry Detector |
TA034 | 1 | Breakout lead for ATC style fuses |
TA035 | 1 | Extension lead for mini style fuses |
TA168 | 1 | Extension lead for JCASE fuse |
TA206 | 1 | Extension lead for maxi style fuses |
TA324 | 1 | Premium 6-way breakout lead set |
PA147 | 1 | 6 pocket roll up pouch in black Pico branded |
TA008 | 1 | Electronics Acupuncture Probes |
TA001 | 2 | Multimeter style test probe (black) |
TA002 | 2 | Multimeter style test probe (red) |
TA003 | 2 | Small crocodile clip (black) |
TA004 | 2 | Small crocodile clip (red) |
TA005 | 2 | Dolphin clip 1000V CATIII (black) |
TA006 | 2 | Dolphin clip 1000V CAT III (red) |
TA017 | 8 | 4mm shrouded to unshrouded adaptor red |
TA157 | 2 | Battery clip 4mm socket (red) |
TA158 | 4 | Battery clip 4mm socket (black) |
TA161 | 8 | Flexible back pinning probe black |
TA162 | 8 | Flexible back pinning probe red |
Fast Sampling
The PicoScope 4823 can capture high-speed signals that are too fast for many other automotive oscilloscopes. With sampling rates of up to 80 million samples per second, there is nothing that can escape the scrutiny of PicoScope.
CAN and FlexRay are now common on vehicles, and new protocols such as SENT for digital sensors and CAN FD (up to 5x faster than the current CAN standard) now present in some vehicles. The fast sampling rate ensures that the PicoScope 4823 has the speed to handle future needs as vehicle technology changes.
Crisp, clear high-resolution display
A deep waveform memory gives you a high time resolution, but a high vertical resolution is equally important. It allows you to see small changes in signal such as ignition coil oscillations and the small dip in current when an injector opens.
Many oscilloscopes only offer 8-bit resolution which allows 256 vertical steps. As most PC monitors have vertical resolutions of over 1000 pixels, this results in a low-resolution “blocky” display. The PicoScope 4823 has 12-bit resolution (4096 steps), and when not using the full sampling rate of the scope this can be enhanced to 16 bits (65 536 steps).
Memory Buffer
The best way to diagnose an intermittent fault is often to set up the scope to measure from several components and wait for the fault to occur. For an intermittent misfire, you might want to capture several minutes of cam, crank, ignition and injector waveforms. These types of tests require an oscilloscope with a “deep” memory buffer, so that you can capture for long periods of time and then zoom in without any gaps or loss of detail.
With PicoScope you can collect 250 MILLION samples, more than any other automotive oscilloscope. Our advanced “always on” memory technology uses hardware acceleration to make sure that the processing of large amounts of data does not slow the oscilloscope down even when you are using a slower or older PC.
Deep memory allows long recordings at high speed – you capture a complete test drive whilst looking for intermittent faults. When not using the full memory for a single waveform, PicoScope automatically stores up to the last 10,000 waveforms in the buffer, so you can stop the scope and “wind back time” to see every capture.
Advanced features
Most new users start by using the guided tests to configure all the settings automatically. As your experience grows there are many advanced features to explore. These include:
- Advanced digital triggers. Unique among automotive oscilloscopes, these trigger modes allow you to trigger when there is too long a time gap (such as when an injector fails to fire). They can also be set to trigger and sound an alarm when a sensor signal goes out of range.
- Filters. Some signals are noisy as wires in the loom pick up noise from other wires. The ECU filters this noise out. The PicoScope 4823 has selectable hardware filters to remove this noise, so you see what the ECU sees.
- Ffrequency measurement. Flow sensors and some airflow sensors output a digital frequency signal. Most oscilloscopes can’t extract usable diagnostic information from this, but your PicoScope can convert it to a conventional analog waveform (as shown in this MAF sensor example).
Every aspect of your PicoScope has been designed for a long working life, and it has the performance to ensure it will not be obsoleted by the changing technology in new vehicles. The hardware is robust and reliable with no moving parts or batteries to fail. Combine this with free support and free software updates for the life of the product and its easy to see why a PicoScope is the choice for professional diagnostics.
USB 3.0 for power, speed and simplicity
As with all our automotive PicoScope oscilloscopes, no external power supply is required and there are no batteries to go flat, just a simple reliable connection to the USB port.
The PicoScope 4823 has the latest SuperSpeed USB 3.0 port to interface to your PC. Don’t worry if your PC only has USB 2.0 ports – the PicoScopes are fully compatible with these too. If you have USB 3.0 on your PC you will notice slightly faster screen update rates, faster file saving and USB streaming. As more of our customers move to PCs with USB 3.0, free software updates will ensure that you get the full benefits available from the new standard.
Our unique fast USB streaming allows continuous gap-free data to be collected straight to PC memory. This makes features like our cylinder balance, battery test and (optional) NVH tests possible. It also allows the oscilloscope to display live, real-time data without waiting for the screen to refresh.
Common ground vs Floating inputs
The 2 and 4 channel automotive PicoScopes feature floating input channels – a unique technology that allows safe, low-noise measurements even in situations where none of the inputs are grounded.
In contrast, the 4823 features a common ground connection where grounding any one input also grounds all the others.
On the 4823, the USB ground of the PC connection is also linked to the ground on the BNC outer connectors. In order to minimise the risks to scan tools and other equipment connected to the PC, the 4823 includes special (self-resetting) protection fuses on the inputs limiting any unwanted current flow on the ground in the event that the ground is incorrectly connected.
Arbitrary waveform and function generator
The PicoScope 4823 has a built-in low-voltage function generator (sine, square, triangle, DC level and others) and arbitrary waveform generator. The output voltage range is ±2 V, and so an external amplifier will be required for most workshop applications.
As well as basic controls to set level, offset and frequency, more advanced controls allow you to sweep over a range of frequencies.
The 14-bit 80 MS/s arbitrary waveform generator (AWG) can be used to emulate low-voltage signals. AWG waveforms can be created or edited using the built-in AWG editor, imported from oscilloscope traces, or loaded from a spreadsheet.
Common ground vs Floating inputs
The 2 and 4 channel automotive PicoScopes feature floating input channels – a unique technology that allows safe, low-noise measurements even in situations where none of the inputs are grounded.
In contrast, the 4823 features a common ground connection where grounding any one input also grounds all the others.
On the 4823, the USB ground of the PC connection is also linked to the ground on the BNC outer connectors. In order to minimise the risks to scan tools and other equipment connected to the PC, the 4823 includes special (self-resetting) protection fuses on the inputs limiting any unwanted current flow on the ground in the event that the ground is incorrectly connected.
Key specifications at a glance |
|
Model | PicoScope 4823 |
Channels | 8 |
Bandwidth | 20 MHz |
Resolution | 12 bits (16 bits enhanced) |
Sampling rate | 80 MS/s (1-4 channels in use) |
40 MS/s (5-8 channels in use) | |
Buffer memory | 250 M samples |
Input ranges (full scale) | ±10 mV to ±50 V in 12 ranges |
Software supplied | PicoScope®, PicoDiagnostics® |
Language support | Chinese (simplified), Chinese (traditional), Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Romanian, Russian, Spanish, Swedish, Turkish |
PC and power requirements | Desktop or laptop running Windows 10 (recommended) |
Powered from PC USB port (USB 3.0 / 3.1 recommended; USB 2.0 compatible). |
Oscilloscope specifications (vertical) |
|
Model | PicoScope 4823 |
Bandwidth | 20 MHz (50 mV to 50 V ranges) |
10 MHz (10 mV and 20 mV ranges) | |
Channels | 8 |
Vertical resolution | 12 bits |
Enhanced vertical resolution | 16 bits |
DC accuracy | ±1% of full scale ±300 μV |
Input Sensitivity | 2 mV/div to 10 V/div |
Input ranges (full scale) | ±10 mV to ±50 V in 12 ranges |
Input characteristics | 1 MΩ in parallel with 19 pF |
Input type | BNC |
Input coupling | Software selectable AC/DC |
Overvoltage protection | ±100 V (DC + AC peak) |
Oscilloscope — horizontal |
|
Maximum sampling rate | |
1-4 channels in use | 80 MS/s |
5-8 channels in use | 40 MS/s |
Maximum sampling rate (USB streaming) | 20 MS/s (USB 3.0) |
10 MS/s (USB 2.0) | |
Buffer memory | 250 M samples |
Waveform buffer | Up to 10,000 waveforms |
Timebase ranges | 100 ns/div to 5000 s/div |
Dynamic performance (typical) |
|
Crosstalk | 76 dB, DC to 20 MHz |
Harmonic distortion | < −60 dB |
SFDR | > 60 dB |
Noise | 220 μV RMS on 50 mV range |
Bandwidth flatness | DC to full bandwidth (+0.25 dB, −3 dB) |
ADC ENOB | 11.3 bits |
Signal generator |
|
Standard output signals | Sine, square, triangle, DC voltage, ramp, sinc, Gaussian, half-sine, white noise, PRBS |
Standard signal frequency | DC to 1 MHz |
Sweep modes | Up, down, dual |
Triggering | Can trigger a counted number of waveform cycles or sweeps (up to 1 billion) |
from the scope trigger or manually from software. | |
Frequency accuracy | ±20 ppm |
Frequency resolution | < 20 MHz |
Voltage range | ±2 V |
Amplitude and offset adjustment | Signal amplitude and offset within ± 2V range. |
DC accuracy | ±1% of full scale |
Output characteristics | Rear-panel BNC, 600 Ω output impedance |
Overvoltage protection | ±10 V |
Arbitrary waveform generator |
|
Update rate | 80 MS/s |
Buffer size | 16 kS |
Resolution | 14 bits |
Triggers |
|
Source | Any input channel |
Basic triggers | Auto, repeat, single, none |
Advanced triggers | Rising edge, falling edge, edge with hysteresis, pulse width, runt pulse, dropout, windowed |
Maximum pre-trigger delay | Up to 100% of capture length |
Maximum post-trigger delay | Up to 4 billion samples |
Spectrum analyzer |
|
Frequency range | DC to 20 MHz |
Display modes | Magnitude, average, peak hold |
Windowing functions | Rectangular, Gaussian, triangular, Blackman, Blackman-Harris, Hamming, Hann, flat-top |
Number of FFT points | Selectable from 128 up to 1 million in powers of 2 |
Scale / units | X axis : linear or log 10 |
Y axis : logarithmic (dbV, dBu, dBm, arbitrary) or linear (volts) | |
Math channels |
|
General functions | −x, x+y, x−y, x*y, x/y, x^y, sqrt, exp, ln, log, abs, norm, sign, sin, cos, tan, arcsin, arccos, arctan, sinh, cosh, tanh, derivative, integral, delay |
Filter functions | Low pass, high pass, band stop, band pass |
Graphing functions | Frequency, duty cycle |
Multi-waveform functions | Min, max, average, peak |
Operands | Input channel, reference waveforms, time, constants, pi |
Automatic measurements |
|
Scope mode | AC RMS, true RMS, cycle time, DC average, duty cycle, falling rate, fall time, frequency, high pulse width, low pulse width, maximum, minimum, peak to peak, rise time, rising rate. |
Spectrum mode | Frequency at peak, amplitude at peak, average amplitude at peak, total power, THD %, THD dB, THD+N, SFDR, SINAD, SNR, IMD |
Statistics | Minimum, maximum, average and standard deviation |
Serial decoding |
|
Protocols | CAN, LIN, I²C, UART/RS-232, SPI, I²S, FlexRay, CAN FD |
Inputs | All input channels with any mixture of protocols |
Mask limit testing | |
Mask generation | Auto generate from captured waveform, manual drawing, manual coordinate entry |
Actions | Highlight on screen, select in buffer overview, activate alarm |
Statistics | Pass/fail, failure count, total count |
Alarms |
|
Initiating events | Capture, buffer full, mask fail |
Alarm actions | Beep, play sound, stop/restart capture, run executable, save current buffer/all buffers, trigger signal generator |
Data export |
|
Output file formats | BMP, CSV, GIF, JPG, MATLAB 4, PDF, PNG, PicoScope data, PicoScope settings, TXT |
Output functions | Copy to clipboard, print |
Environmental |
|
Operating environment | |
Temperature range | 0 °C to 40 °C (20 °C to 30 °C for quoted accuracy) |
Humidity | 5% to 80% RH, non-condensing |
Storage environment | |
Temperature range | –20 to +60°C |
Humidity | 5% to 95% RH, non–condensing |
Physical dimensions | |
Dimensions | 190 x 160 x 40 mm (approx 7.5 x 6.3 x 1.6 in) |
Weight | < 550 g (approx 1.2 lb) |
Software |
|
Software included | PicoScope 6 oscilloscope software with waveform database and guided tests. PicoDiagnostics software |
Languages | Chinese (simplified), Chinese (traditional), Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Korean*, Norwegian, Polish, Portuguese, Romanian, Russian, Spanish, Swedish, Turkish |
General |
|
Additional hardware (supplied) | USB cable, user manuals |
PC requirements | Desktop or laptop running Windows 10 recommended |
(read more) | |
PC connectivity | Powered from PC USB port (USB 3.0 / 3.1 recommended, USB 2.0 compatible). |
Power requirements | Powered from USB ports |
Safety approvals | LVD compliant |
EMC approvals | Tested to meet EN61326-1:2006 and FCC Part 15 Subpart B |
Environmental approvals | RoHS and WEEE compliant |
Warranty | 2 years |
